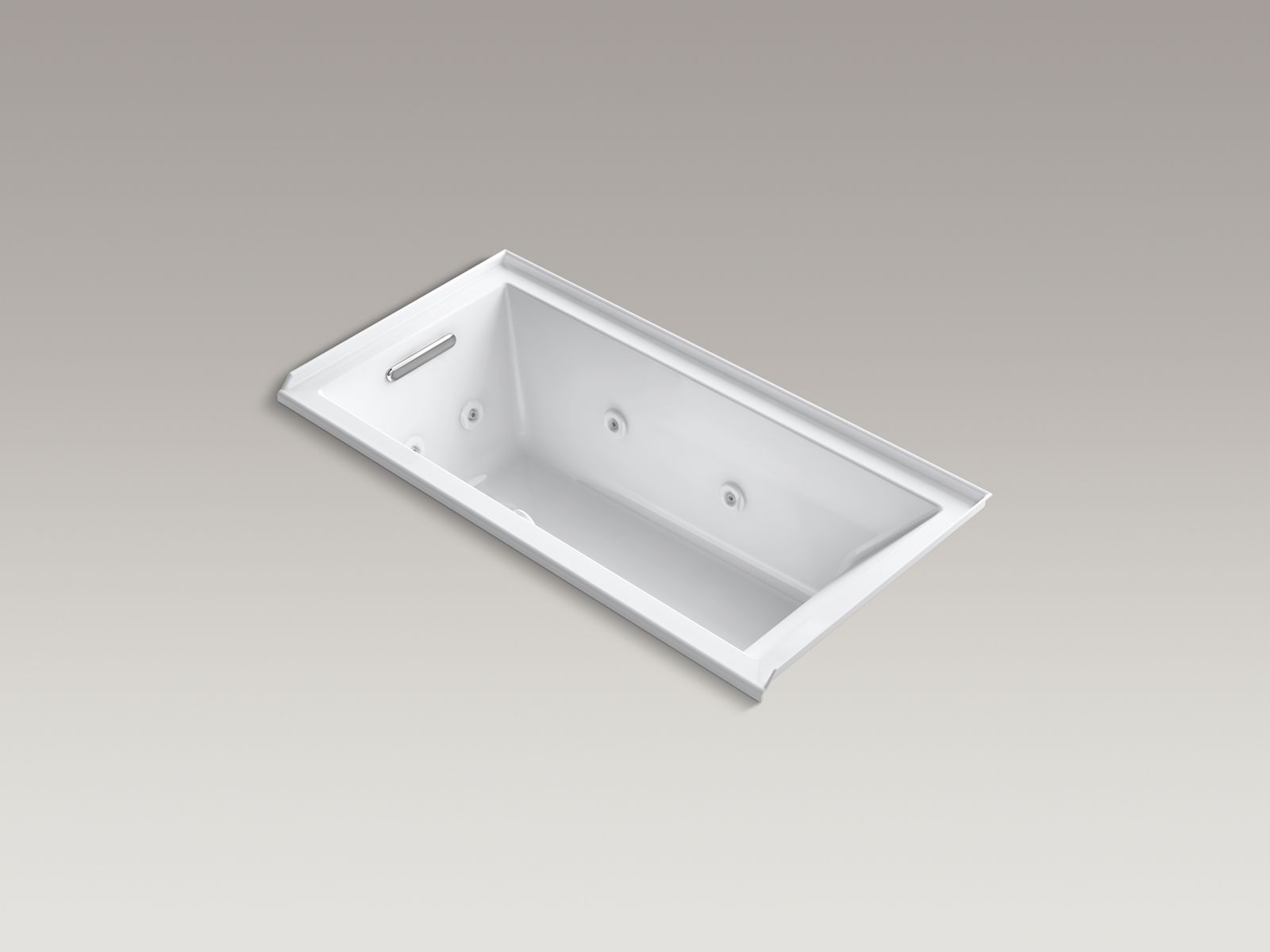

Underscore® 60" x 30" alcove whirlpool with integral flange and left-hand drain


K-1167-LH2-0
$3,687.85 List Price
COLOR:

REQUIRED ITEMS:



  • Subtotal: $3,687.85


TECHNICAL INFORMATION


Dimensions:

L 60", H 20-1/4", W 30"

Underscore® 60" x 30" alcove whirlpool with integral flange and left-hand drain

Material:

Acrylic

Installation:

Alcove

Receive the tension-relieving benefits of this Underscore whirlpool, equipped with eight adjustable jets for a powerful hydromassage. The built-in heater keeps the water at your desired temperature throughout your bath. And a slotted overflow drain invites full immersion by allowing the maximum water height.

  • Features
  • 60"L x 30"W x 19"H
  • Drop-in installation
  • Clean simple design lines to coordinate with a variety of products
  • Three-sided integral flange
  • 8 Flexjet™ whirlpool jets
  • 240V hard-wire electrical service required
  • 1.5-kW inline heater
  • Slotted overflow for a deep bathing experience
  • KOHLER Acrylic
  • Material
  • Acrylic
  • Hydrotherapy
  • Whirlpool
  • Installation
  • Three-wall alcove.
  • Requires 240V hard-wire electrical service.
  • Additional Hydrotherapy Options
  • Soaking Bath - 1121-L
  • Soaking Bath + Bask heated surface - 1121-LW
  • BubbleMassage air bath - 1167-LFG
  • BubbleMassage air bath + chromatherapy - 1167-LGCR
  • BubbleMassage air bath + Bask heated surface + chromatherapy - 1167-GCRLW
  • VibrAcoustic + BubbleMassage air bath - 1167-GVL
  • VibrAcoustic + BubbleMassage air bath + Bask heated surface + chromatherapy - 1167-GVCLW
  • BubbleMassage air bath + Bask heated surface - 1167-GLW
  • Whirlpool + heater - 1167-LH2
  • VibrAcoustic - 1167-LVB
  • VibrAcoustic + chromatherapy - 1167-LVBC
  • VibrAcoustic + chromatherapy + Bask heated surface - 1167-VCLW
  • VibrAcoustic + Bask heated surface - 1167-VBLW
  • Whirlpool + BubbleMassage air bath - 1167-XH2GL

TECHNICAL INFORMATION


Dimensions:

L 60", H 20-1/4", W 30"

Underscore® 60" x 30" alcove whirlpool with integral flange and left-hand drain

Material:

Acrylic

Installation:

Alcove

Rough In/Spec Sheet
Homeowners Guide with Service Parts
Installation and Care Guide without Service Parts
Installation and Care Guide without Service Parts

VIDEOS


TEMPLATE & SYMBOL DOWNLOADS


3D CAD Files:

DXF | DWG | 3DS | OBJ |
