Product [Backup Product]

Wellworth®

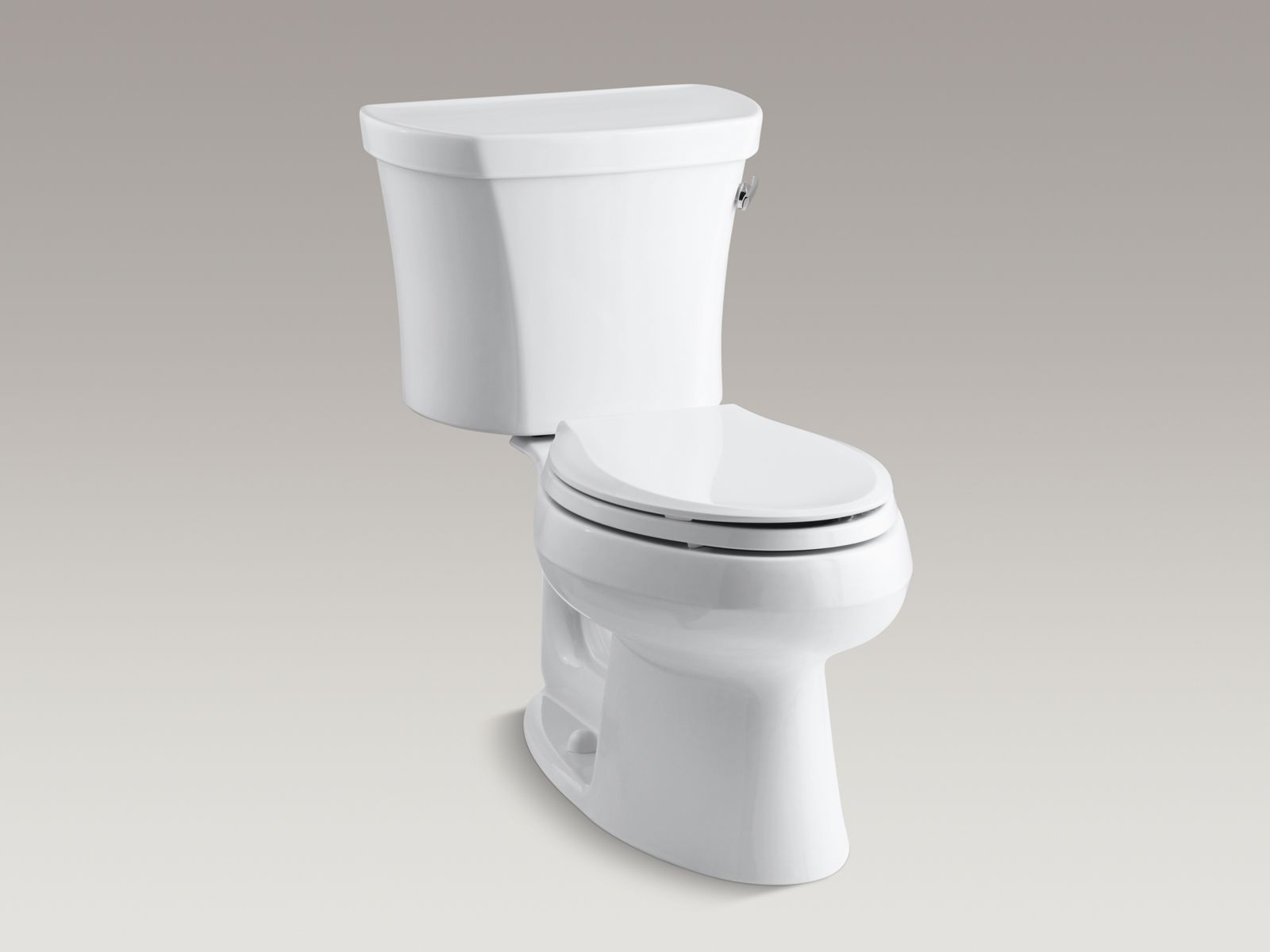

Wellworth toilets have been an American benchmark for style, innovation, and performance since 1936. Part of the Wellworth collection, this high-efficiency toilet provides significant water savings of up to 16,500 gallons per year, compared to an old 3.5-gallon toilet, without sacrificing flush power. This model includes an insulated tank liner to help prevent condensation on the outside of the tank.

  • Features
  • Two-piece toilet.
  • Elongated bowl offers added room and comfort.
  • 1.28 gallons per flush (gpf).
  • 2-1/8-inch glazed trapway.
  • Right-hand trip lever included.
  • Insuliner® tank liner minimizes condensation on the tank when exposed to high humidity.
  • Seat and supply line not included.
  • Combination consists of K-4841-UR tank and the K-4198 bowl.
  • Coordinates with other products in the Wellworth collection.
  • Technology
  • Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing.
  • Canister flush valve optimizes flush performance and resists warping and deterioration.
  • Class Five® flushing technology offers plug- and leak-free performance, extraordinary flushing, and better rinsing power for a cleaner bowl.
  • Installation
  • 14-inch rough-in.
  • Three-bolt installation.
  • Water Conservation & Rebates
  • WaterSense® toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.
  • Eligible for consumer rebates in some municipalities.
This configuration is not available. Please make another selection.
This configuration is not available. Please make another selection.

Configure and Add Required Items <STRONG>Required Items</STRONG>
There are additional items required to install this product.

List Price:

Required Items Added Edit
Parts & Service
Find Replacement Parts

Dimensions

Height 28-3/4"
Length 31-5/8"
Width 18-1/4"

dimensions diagram

Template & Symbol Downloads

To open these downloads you will need specific programs such as Autocad.

Videos

Class Five Flushing System A look at the benefits of this flushing system, featuring extraordinary power and water-saving options.
0:52
Parts & Service
View and buy parts for this product
Have a question or concern about this product? If you don't find your answer, we're always here to help. Call 1-800-4KOHLER 1-800-456-4537) or send us a question or request.
*All prices are Manufacturer's Suggested List Price in U.S. dollars. The price you pay at your local supply outlet may be different than the Manufacturer's Suggested List Price. These prices supersede previous prices and are subject to change without notice. These prices do not include shipping. Any sales tax applicable will be added to the prices.
Due to the differences in monitors, technical factors, and characteristics of some of our finishes, the colors shown here cannot be represented with all their true qualities. The color titles should only be considered a guide.
