This product has been discontinued.

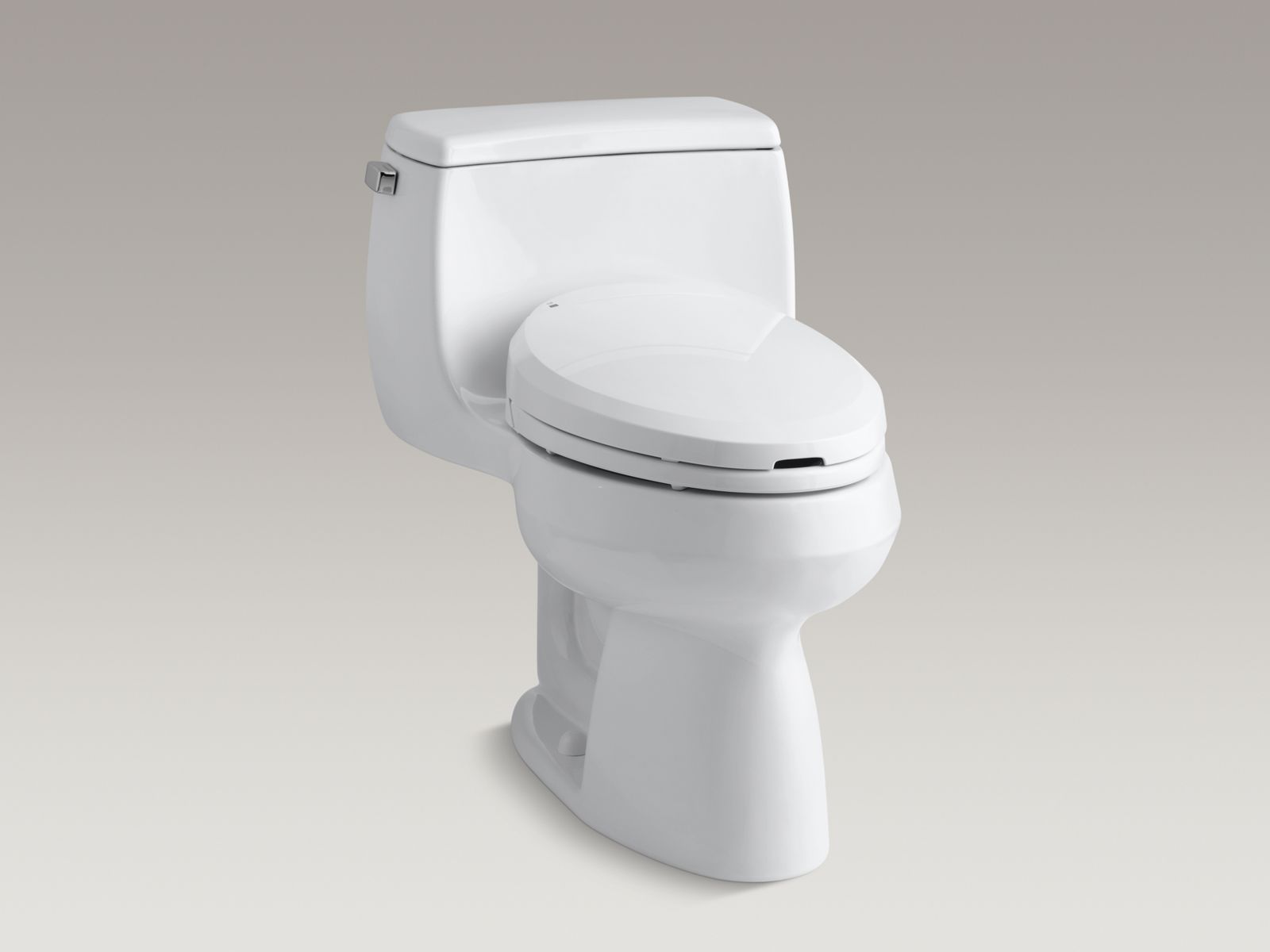

Gabrielle™ Comfort Height® one-piece compact elongated 1.28 gpf toilet with AquaPiston® flush technology and left-hand trip lever


K-3825-0

RESOURCES

PARTS


Toilet Parts Interactive Diagram
Bidet Seat Interactive Diagram

TECHNICAL INFORMATION


Rough In/Spec Sheet
Installation and Care Guide with Service Parts

VIDEOS



Dimensions:

L 28-3/8", H 28", W 18-3/4"

Gabrielle™ Comfort Height® one-piece compact elongated 1.28 gpf toilet with AquaPiston® flush technology and left-hand trip lever


This stylish Gabrielle toilet includes a C3® toilet seat with bidet functionality to help make your life healthier and more comfortable. Featuring a compact elongated bowl, this toilet comes with a heated seat with an air blower option. At your command, continuously heated water sprays out of two wands with adjustable pressure and temperature. A built-in night-light and automatic deodorization complete this impressive toilet. The 1.28-gallon flush provides significant water savings of up to 16,500 gallons per year, compared to a 3.5-gallon toilet, without sacrificing performance.

  • Features
  • One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design.
  • Compact elongated bowl offers added comfort while occupying the same space as a round-front bowl.
  • Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults.
  • 1.28 gallons per flush (gpf).
  • 2-1/8-inch glazed trapway.
  • Quick-Release™ functionality allows seat to be quickly unlatched from the toilet for easy removal and convenient cleaning; no tools required.
  • Standard left-hand trip lever included.
  • Includes C3 Toilet Seat with Bidet Functionality.
  • Heated water sprays from two wands, adjustable for temperature, position, and spray motion.
  • Air blower and heated seat with adjustable temperature.
  • Remote control with two programmable presets.
  • Automatic deodorization and night-light.
  • For use only with the K-3607 and K-3825 toilets (comes included with those toilets).
  • Includes an antimicrobial agent that protects the toilet seat from odor- and stain-causing bacteria, mold and mildew. Antimicrobial agent does not protect the user from disease-causing bacteria.
  • Technology
  • Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing.
  • AquaPiston canister allows water to flow into the bowl from all sides (360 degrees), increasing the power and effectiveness of the flush.
  • Flush valve's 3: 2 ratio harnesses the natural force of gravity and optimizes flush performance.
  • Durable canister design has 90% less exposed seal material than a 3-inch flapper, for leak-free performance.
  • Light-touch canister flush requires a lower actuation force than a flapper.
  • Installation
  • Standard 12-inch rough-in.
  • Requires a dedicated circuit electrical outlet.
  • Water Conservation & Rebates
  • WaterSense® toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.
  • Eligible for consumer rebates in some municipalities.
