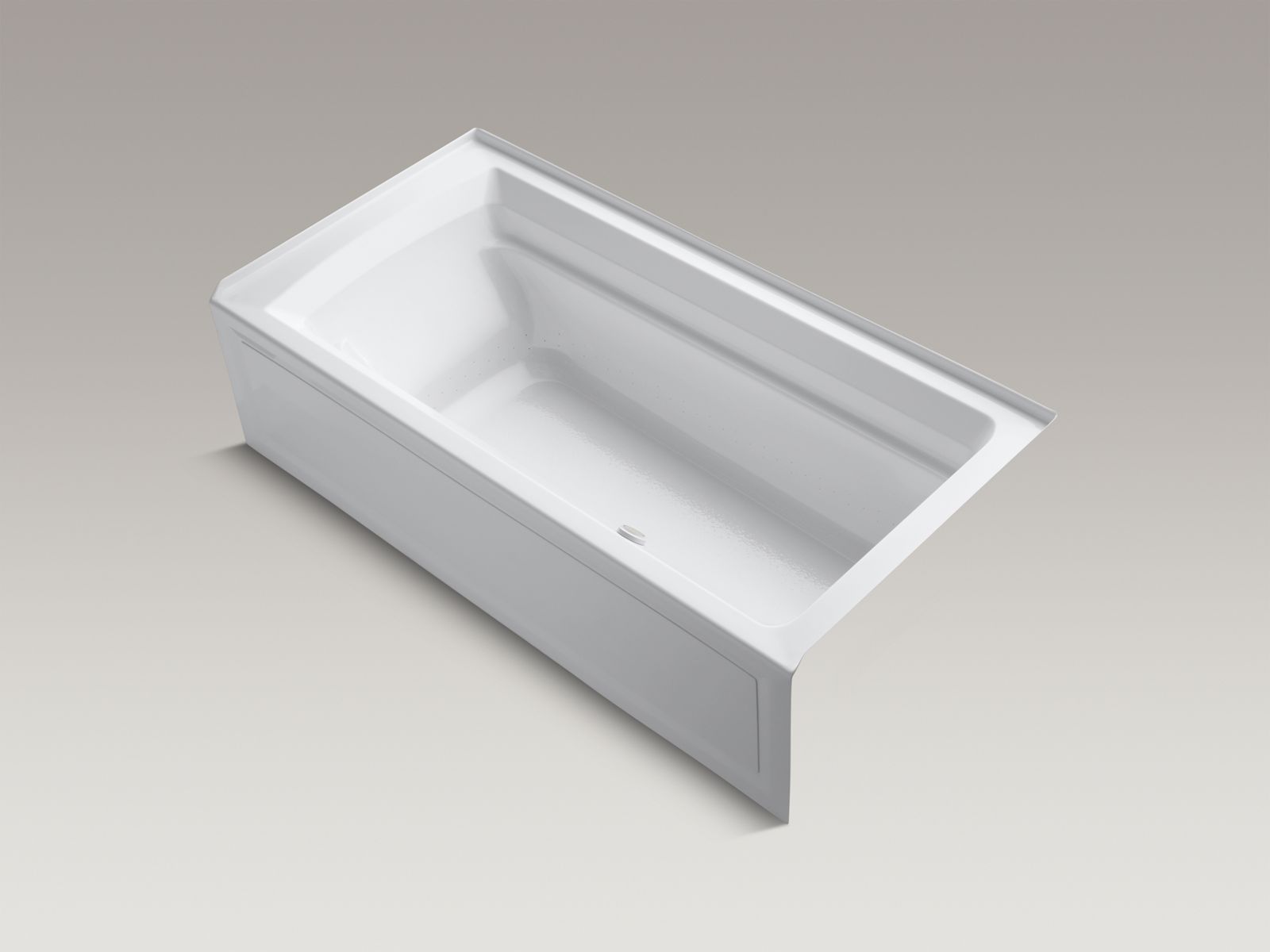

Archer® 72" x 36" alcove BubbleMassage™ Air Bath with integral apron and right-hand drain


K-1124-GRA-0
$3,070.25 List Price
COLOR:

REQUIRED ITEMS:



  • Subtotal: $3,070.25


TECHNICAL INFORMATION


Dimensions:

L 72", H 19", W 36"

Archer® 72" x 36" alcove BubbleMassage™ Air Bath with integral apron and right-hand drain

Material:

Acrylic

Installation:

Alcove

With BubbleMassage hydrotherapy, airjets release thousands of bubbles to massage your body at the level of intensity you prefer. Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This air bath offers a low step-over height while allowing for deep, comfortable soaking.

  • Features
  • 120 airjets release thousands of bubbles that surround, support, and massage the body.
  • Variable-speed blower lets you adjust massage intensity to 18 levels.
  • Electronic keypad.
  • Comfort Depth® design offers a convenient 19-inch step-over height while retaining the same depth as a standard 21-inch bath.
  • Generous 6-foot length provides an incredibly spacious bathing area.
  • Molded lumbar support offers extra comfort while bathing.
  • Slotted overflow allows for deep soaking.
  • Integral apron.
  • Integral flange helps prevent water from seeping behind wall and simplifies alcove installation.
  • Textured bottom surface
  • Right-hand drain.
  • Material
  • Acrylic
  • Hydrotherapy
  • BubbleMassage
  • Installation
  • Three-wall alcove.
  • Additional Hydrotherapy Options
  • Soaking Bath - K-1125-RA
  • Soaking Bath + Bask heated surface - K-1125-RAW
  • BubbleMassage air bath - K-1124-GRA
  • BubbleMassage air bath + Bask heated surface - K-1124-GRAW
  • VibrAcoustic - K-1124-VBRA
  • VibrAcoustic + Bask heated surface - K-1124-VBRAW
  • Whirlpool - K-1124-RA
  • Whirlpool + heater - K-1124-HR
  • Whirlpool + Bask heated surface - K-1124-RAW
  • Whirlpool + BubbleMassage air bath - K-1124-XHGRA

RESOURCES

PARTS


Drains Interactive Diagram
Blower Harness Interactive Diagram
Control Keypads Interactive Diagram

TECHNICAL INFORMATION


Dimensions:

L 72", H 19", W 36"

Archer® 72" x 36" alcove BubbleMassage™ Air Bath with integral apron and right-hand drain

Material:

Acrylic

Installation:

Alcove

Rough In/Spec Sheet
Installation and Care Guide without Service Parts

VIDEOS


TEMPLATE & SYMBOL DOWNLOADS


2D CAD Files:

Plan

DXF | DWG |

Front

DXF | DWG |

Side

DXF | DWG |
