Portrait®

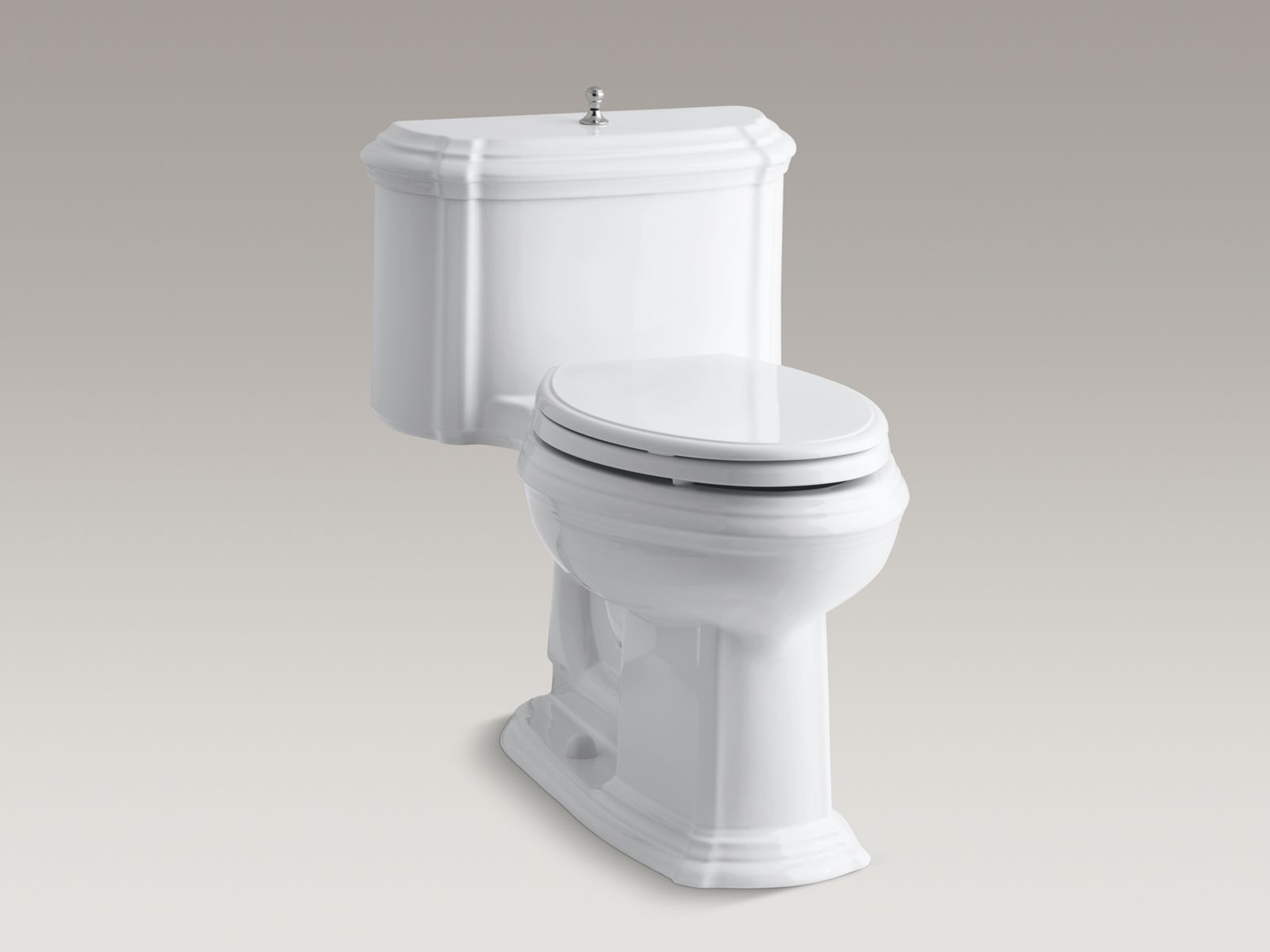

The Portrait collection draws its inspiration from the understated sophistication of French Provincial design. With its sculpted lines and soft edges, this Portrait toilet reflects the contours found in traditional furniture yet is versatile enough to fit many bathroom styles. The sleek one-piece toilet comes with a gentle-close seat and lid that detach for easy cleaning. And with a 1.6 gallon flush setting, this toilet delivers outstanding performance.

  • Features
  • One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design.
  • Compact elongated bowl offers added comfort while occupying the same space as a round-front bowl.
  • Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults.
  • 1.6 gallons per flush (gpf).
  • 2-1/8-inch glazed trapway.
  • Glenbury™ Quiet-Close™ seat with Quick-Release™ functionality allows seat to close quietly and quickly unlatch from the toilet for easy removal and convenient cleaning.

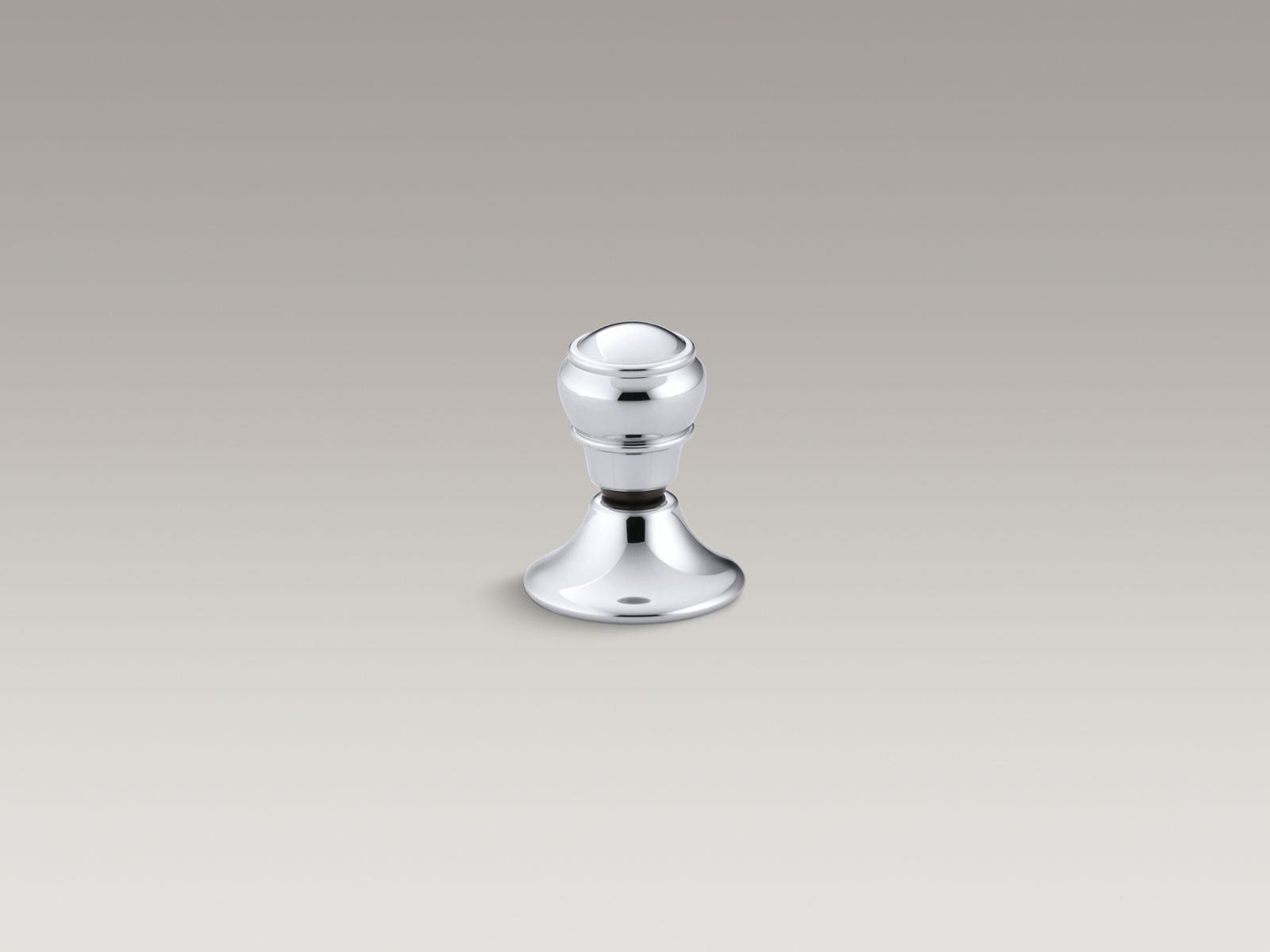

  • Includes Polished Chrome lift knob.
  • Supply line not included.
  • Coordinates with other products in the Portrait collection.
  • Technology
  • Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing.
  • Class Five® flushing technology offers plug- and leak-free performance, extraordinary flushing, and better rinsing power for a cleaner bowl.
  • Installation
  • Standard 12-inch rough-in.

Parts, Service & Support

Angle Supplies With Stops Interactive Diagram
One-Piece Toilet with 3" Flush Valve Interactive Diagram
Toilet Seat Parts Interactive Diagram
Care & Cleaning Tips
Warranty Information

Have a question or concern about this product? If you don't find your answer,
we're always here to help.

Call 1-800-4KOHLER (1-800-456-4537) or send us a question or request.

This configuration is not available. Please make another selection.
This configuration is not available. Please make another selection.

Configure and Add Required Items <STRONG>Required Items</STRONG>
There are additional items required to install this product.

List Price:

Required Items Added Edit

Dimensions

Height 28-7/8"
Length 27-3/4"
Width 20-1/2"

dimensions diagram
