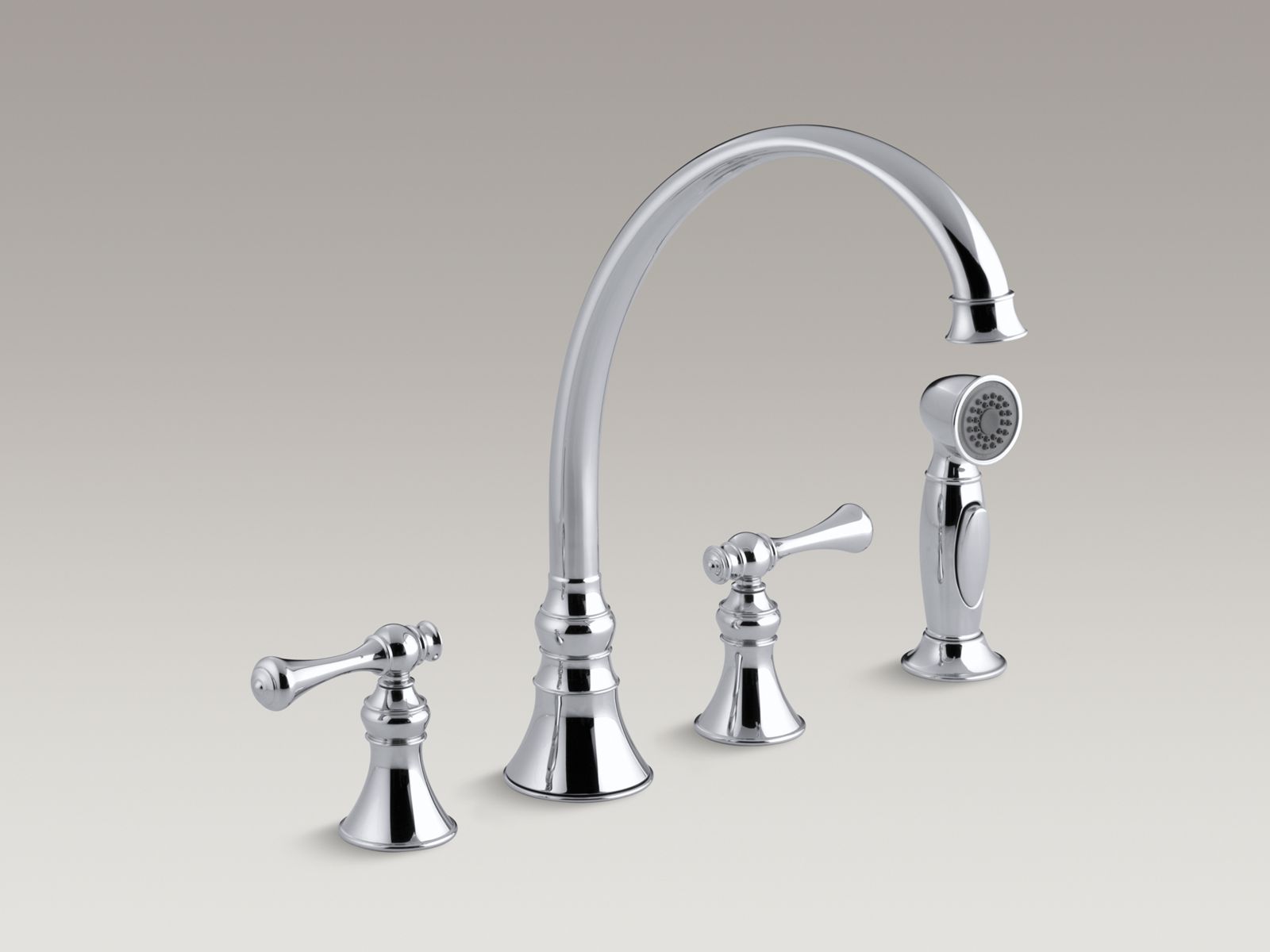

Revival® 4-hole kitchen sink faucet with 9-3/16" spout, matching finish sidespray and traditional lever handles


K-16109-4A-CP
$595.00 List Price
COLOR:


TECHNICAL INFORMATION


Dimensions:

L 9-3/16", H 12-3/16", W 2-5/8"

Installation:

Deck-mount

With its classic lines and graceful high-arching swing spout, this Revival kitchen sink faucet evokes old-world beauty. The ergonomic lever handles feature a striking traditional design, and the color-matched sidespray simplifies up-close cleaning. This faucet is outfitted with easy-to-install and leak-free UltraGlide™ valves for excellent performance.

  • Features
  • Two traditional lever handles offer separate control of hot and cold water.
  • Ergonomic handle rotation provides on/off control with a simple quarter turn.
  • High-arch swing spout offers generous clearance for filling pots and cleaning.
  • Matching Accent™ sidespray provides flexibility and convenience for cleaning and food prep.
  • UltraGlide valves resist deterioration and mineral buildup common to other valve designs, resulting in long-lasting, reliable performance.
  • Coordinates with other products in the Revival collection.
  • Material
  • Solid-brass construction.
  • KOHLER finishes resist corrosion and tarnishing.
  • Sidespray is color-matched to the faucet finish.
  • Installation
  • Four-hole installation.
  • Flexible supply lines and installation ring simplify installation.

RESOURCES

PARTS


Sidespray Service Parts
Spout Service Parts
Valves and Tees
Valves and Tees
Handle Parts
Pull-Out Sprays

TECHNICAL INFORMATION


Dimensions:

L 9-3/16", H 12-3/16", W 2-5/8"

Revival® 4-hole kitchen sink faucet with 9-3/16" spout, matching finish sidespray and traditional lever handles

Installation:

Deck-mount

Rough In/Spec Sheet
Installation and Care Guide without Service Parts

TEMPLATE & SYMBOL DOWNLOADS


2D CAD Files:

Plan

DXF | DWG |

Front

DXF | DWG |

Side

DXF | DWG |

3D CAD Files:

DXF | DWG | 3DS | OBJ |
